How Do You Measure a Widespread Faucet?

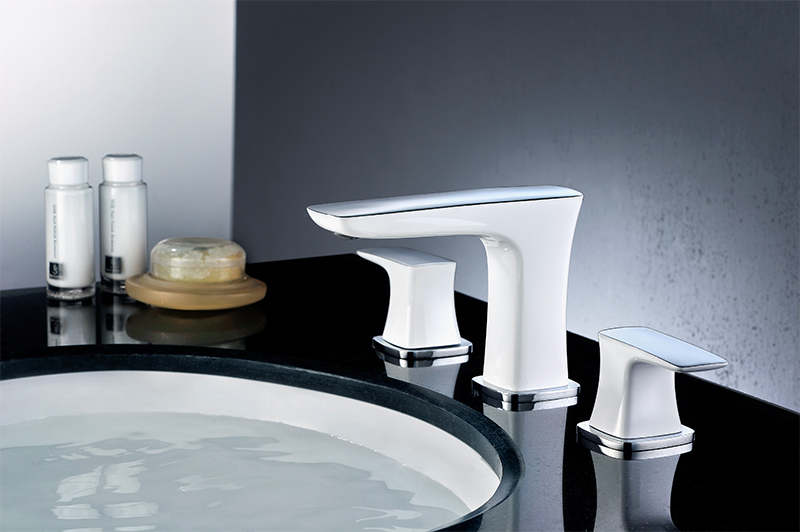

Measuring a widespread faucet is the fastest way to avoid mismatched hole spacing, handle interference, and installation delays. A Widespread Bathroom Faucet normally uses three mounting points: hot handle, spout, and cold handle. The critical measurements are the hole spread between handles, the reach and height of the spout, and the clearances needed for handles, backsplash, and drain components. This guide shows exactly what to measure on an existing faucet and on the sink or countertop, plus how to translate those numbers into a confident replacement choice.

Know What Counts as Widespread Measurements

A widespread faucet set is defined by separate mounting components rather than a single one-piece centerset body. Most widespread Bathroom Faucet sets fit adjustable hole spreads, commonly within an 8 inch to 16 inch range, though every model has its own allowed spacing. Measuring is not only about the faucet, it is also about the surface it mounts into.

You will measure two things:

• The sink or countertop drilling
  This tells you what you can install without modification.

• The faucet geometry
  This tells you whether the spout clears the sink and whether the handles work comfortably in the space.

If you measure only one side of this equation, you can still end up with a faucet that fits the holes but feels wrong in daily use.

Measure the Hole Spread Correctly

Hole spread is the most important widespread measurement. It is always measured from the center of one handle hole to the center of the other handle hole.

Steps:

1. Identify the hot and cold handle holes
   On a three-hole widespread setup, the spout is in the middle and the handles are left and right.

2. Measure center-to-center between the two handle holes
   Use a tape measure and align it through the hole centers. Do not measure edge-to-edge.

3. Record the number in inches and millimeters
   Contractors often work in inches, while product sheets often show metric too. Recording both avoids confusion in procurement.

4. Confirm if the holes are fixed or if there are extra holes
   Some vanity tops are pre-drilled with fixed positions, while others allow slight adjustment if the holes are oversized or slotted.

Typical outcomes:

• 8 inch hole spread
  Common widespread layout in many residential vanities.

• 10 to 12 inch hole spread
  Seen in custom countertops and some hotel projects.

• Up to 16 inch hole spread
  Common upper range supported by adjustable widespread faucet kits.

If your countertop measures 4 inches between hot and cold holes, that is a centerset pattern, not widespread.

Measure Hole Diameter and Deck Thickness

Even with the correct spread, the faucet must physically pass through the holes and clamp securely.

What to measure:

• Hole diameter for each opening
  Measure across the hole opening. If the faucet shank or valve body is larger than the hole, it will not pass through. If the hole is too large, trim plates may not cover it.

• Deck thickness at the mounting area
  Measure the thickness of the sink deck or countertop where the faucet mounts. Many faucets have a maximum deck thickness they can clamp to with the provided mounting hardware.

Practical tip: If you cannot measure thickness easily, look under the sink for the exposed edge and measure from the top surface to the underside. Include any sink deck lip or countertop build-up that the mounting nut must pass through.

Measure Spout Reach, Spout Height, and Stream Position

A widespread faucet can fit the holes and still perform poorly if the water stream lands in the wrong spot. Spout geometry drives daily comfort and splash control.

Key spout measurements:

• Spout reach
  Measure from the centerline of the spout mounting hole to the center of the aerator outlet. This tells you where the water stream will land.

• Spout height
  Measure from the sink deck to the aerator outlet. This affects hand clearance and splash.

• Stream landing point
  Estimate where the water hits the basin by projecting the aerator position over the bowl. A stream that hits too close to the back causes splashing and poor rinsing.

A practical target is a stream that lands near the bowl center or slightly toward the drain, depending on basin depth. If it lands too close to the rim, splashing increases.

Measure Handle Clearance and Back-splash Space

Handle spacing and backsplash clearance affect whether the faucet feels cramped.

Things to check:

• Handle swing radius
  Make sure the handle has enough room to rotate without hitting a backsplash, mirror frame, or wall.

• Distance from the back edge of the sink to the wall
  If the sink is close to the wall, some widespread handle designs may bump the wall or feel awkward to operate.

• Knuckle clearance above the sink deck
  Very low-profile handles can be hard to grip when the sink deck is tight.

If you are replacing an existing faucet, measure the distance from the existing handle base to the backsplash. That number is a strong indicator of what handle footprint will work comfortably.

Measure Drain Compatibility and Under-Sink Space

A widespread faucet replacement often includes a new drain assembly. Under-sink space also matters because widespread sets may have separate valve bodies and flexible connections.

Measure or confirm:

• Drain opening size and type
  Bathroom basins commonly use a standard drain opening, but the drain style can differ based on whether you use a pop-up or a grid drain approach.

• Under-sink clearance behind the bowl
  Separate valve bodies need room. If there is a tight cabinet brace or a shallow vanity, installation can become difficult.

• Supply line connection positions
  Confirm that the hot and cold supplies can reach the new valve locations without sharp kinks.

For project installations, these under-sink checks prevent the classic delay where a faucet fits the top holes but cannot be tightened properly underneath.

Quick Measurement Checklist Table

This table helps you record what matters before selecting a replacement faucet.

Take a photo of your measurements and keep them with your procurement notes. This is useful for both homeowners and project buyer workflows.

COIGN Support for Accurate Selection and Consistent Install Results

When you have accurate measurements, selecting a widespread faucet becomes simple. COIGN’s double handle basin faucet is built for bathroom basin applications where buyers want a two-handle style with dependable fit and consistent finish. For wholesale supply and OEM programs, repeatable geometry matters because it keeps installation steps consistent across multiple rooms and reduces the risk of mixed batches not matching.

If you are sourcing for a multi-bathroom project, documenting hole spread, hole diameter, and backsplash clearance for each vanity lets you standardize the faucet model and reduce on-site adjustments.

Conclusion

To measure a widespread faucet correctly, start with the handle hole spread measured center-to-center, then confirm hole diameter and deck thickness so the faucet can physically mount. Next, measure spout reach and height to ensure the water stream lands in a practical spot with minimal splash. Finally, confirm handle clearance, backsplash space, and under-sink room so installation and daily use remain comfortable. With these measurements recorded, selecting the right two-handle basin faucet becomes a straightforward decision rather than guesswork. For a reliable two-handle solution aligned with widespread bathroom layouts, review COIGN’s double handle basin faucet.
