Bathroom Showers Fixtures

1. Three-Way Switching

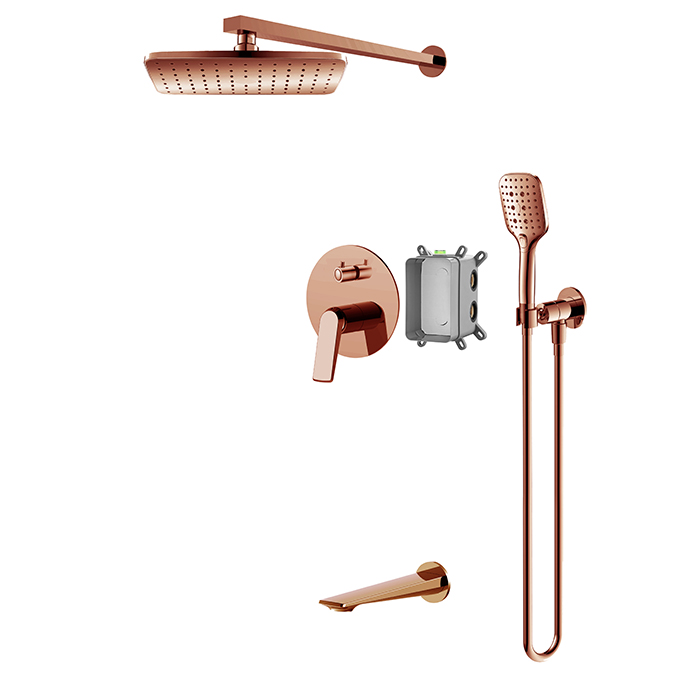

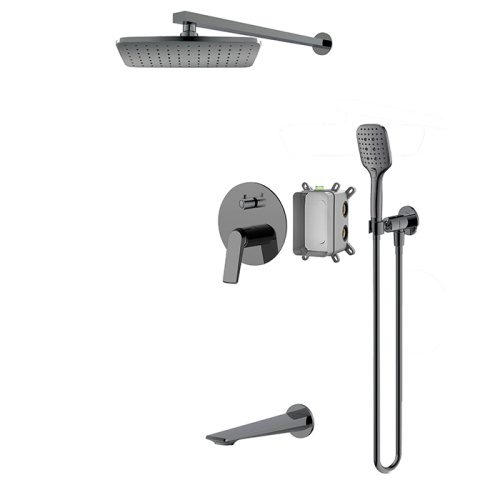

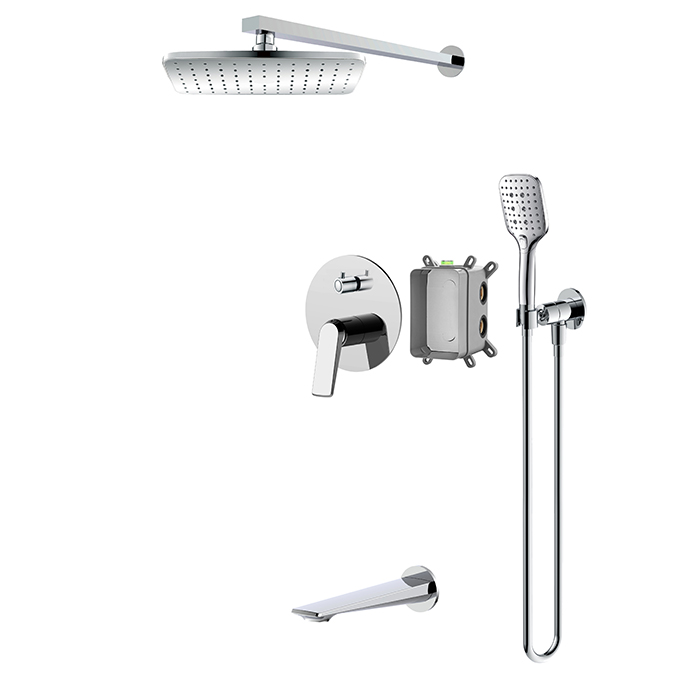

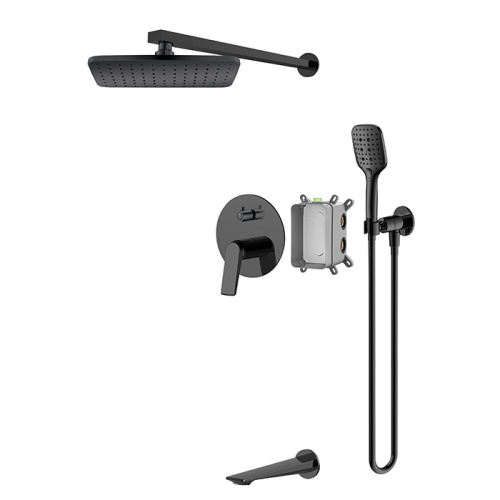

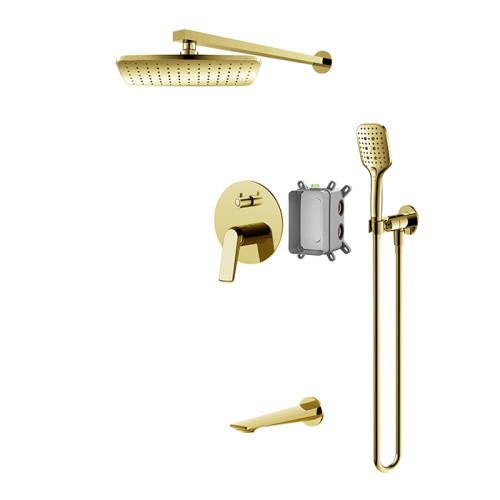

The three-function diverter structure of the Bathroom Showers Fixtures supports three independent water outlet modes: overhead shower, handheld shower, and bathtub. The built-in three-way water channel uses an equal-diameter design, effectively reducing pressure loss and ensuring continuous and uninterrupted water flow output under various household water pressure conditions.

2. Thickened Connections

The device uses a thickened curved leg connection structure, whose metal density and wall thickness meet the standards for building installation materials. The installation stress points can withstand external tensile forces greater than twenty kilograms without deformation or cracking. Each set of threads is tested using GO-NO GO gauges, and the stable thread accuracy significantly improves the structural stability after installation.

3. Overhead Shower Area

The overhead shower uses a 300 x 200 mm wide water outlet panel, and the evenly distributed internal water outlets maintain a coverage uniformity of over ninety percent. The ABS material has passed salt spray testing, achieving corrosion resistance for over twenty-four hours, and is not prone to surface oxidation during long-term use. The wide water outlet increases the contact area, maintaining good coverage and comfort even at a constant flow rate.

4. Handheld Structure

The handheld shower is molded from high-strength ABS material, with a weight controlled within a reasonable range to reduce hand fatigue during prolonged use. The surface coating has passed adhesion tests to meet Level 3 standards, with stable wear resistance. The water outlet mode uses a directional flow hole design to maintain water column consistency.

5. Sealing Performance

The system uses a multi-layer sealing structure internally. The valve body sealing ring has passed a one-megapascal static pressure test, ensuring no leakage under continuous pressure. The sealing components of the embedded box have undergone both temperature and pressure resistance tests, maintaining sealing integrity even in environments with frequent hot and cold water switching.

Application:

1. Home Bathrooms

Bathroom Showers Fixtures are suitable for the main or guest bathrooms in homes. The three-way water outlet structure enhances the variety of showering options, meeting the usage habits of different family members. It can be installed even in limited spaces and adapts to various residential wall structures and water supply systems.

2. Hotel Bathrooms

Suitable for bathroom upgrades in star-rated hotels or boutique accommodations. Due to the high stability of the internal valve body, it maintains structural longevity in high-frequency commercial environments. The multi-functional water outlet modes meet the hotel's requirements for user experience and space cleanliness.

3. Apartment Projects

Bathroom Showers Fixtures are suitable for long-term rental apartments, new apartments, or centralized residential projects. Its installation depth and structure are suitable for standardized renovation and construction, allowing for large-scale deployment within the same project. Stable sealing performance reduces the frequency of future maintenance.

FAQs:

Q: Does this shower system require pre-reserved installation depth?

A:  The installation depth needs to be reserved according to the embedded mixing valve housing. Generally, the depth within the wall needs to meet the basic installation dimensions. Before construction, the pipe location and space should be confirmed to ensure smooth maintenance later.

Q: Can the overhead shower and handheld shower operate simultaneously?

A: This system features a three-way independent switching structure, supporting only one water outlet mode at a time. The diverter valve has independent water channels to ensure stable pressure and flow in each mode.

Q: Is it suitable for low water pressure environments?

A: The device can operate normally within a water pressure range of 0.1 to 0.3 MPa, but the overhead shower performance will be affected by the overall water pressure. If the water pressure is low, it is recommended to add a booster pump for better water flow.

Q: Is cleaning and maintenance convenient?

A: Both the overhead and handheld showers are made of easy-to-clean materials with good stain resistance. Regular wiping of the water outlets and surfaces is sufficient to maintain stable water flow, without the need for complex disassembly.

Q: Is after-sales service provided?

A: The product comes with a five-year warranty, covering the quality of key components such as the valve core structure and main components. If functional failures occur during normal use, corresponding after-sales support will be provided.
